Contemporary Architecture

Journey Café, Shiraz

Chenin Studio, Mohammad Moazeni·Photos: Arash Akhtaran·Memar 154 — 25th Memar Award
Journey Café, Shiraz
Location: Alireza’i Street, Shiraz · Clients: Hedayatian, Salehi, Tayebi · Design team: Hasti Bozorg Zadeh, Saba Asiaban, Amir Jabbari · Supervision: Chenin Studio · Construction: Nima Salehi · Graphic: Chenin Studio · Photo: Arash Akhtaran · Area: 35 m² · Built area: 105 m²

The trapezoidal outline of a thirty-five-square-metre plot, together with the L-shaped staircase on the trapezoid’s shorter side that binds the floors together, can be regarded as the defining structure of the project. The principal strategy may be understood as the division of this structure into two entirely separate cores that shape the spaces of host and guest.

The right core — the larger side — houses the functional components: hot and cold bar, and bread baking. The left core, built around the staircase structure, becomes a path that leads from the city up to the rooftop, receiving visitors along the way. This path begins at the pavement, maintaining continuity with the project’s materials, and ascends through the stairs to the roof.

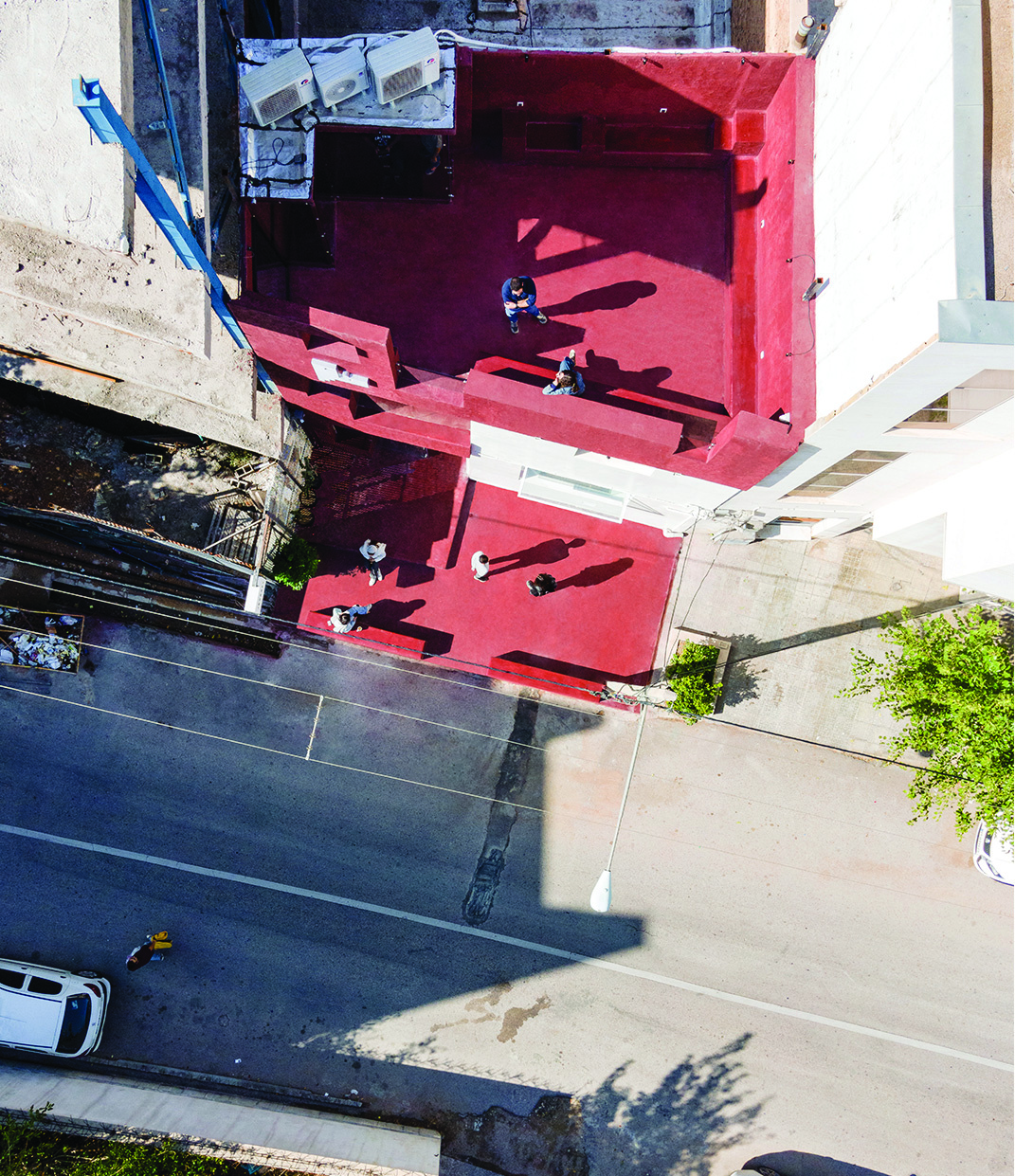

Aerial view of Journey Cafe showing the red cement rooftop with people sitting on the stepped staircase structure, the street and pavement visible below
Aerial view — the red cement render of the left core extends from pavement to rooftop, connecting city and sky
♦ ♦ ♦

Two Cores

The right core consists of two white functional boxes stacked on top of each other, which, in their ultimate simplicity and feasibility, serve as the bar on the ground floor and the bakery on the first floor.

The left core, clad in coloured render, opens itself to the rooftop and the exterior space — the pavement — presenting itself as a connective element that, by being added to the project, has enabled the activation of the roof and the building’s prominence within the urban edge. By connecting the staircase, already present in the project, to the ceiling and to the space of the city through a red cement render, the staircase plays the role of an intermediary and inviting space that, in a certain sense, evokes the passage through exterior space within the project’s interior. The left core, in addition to connecting the city to the rooftop, provides a unique spatial experience for the visitor through its alternating openings and closures along the route.

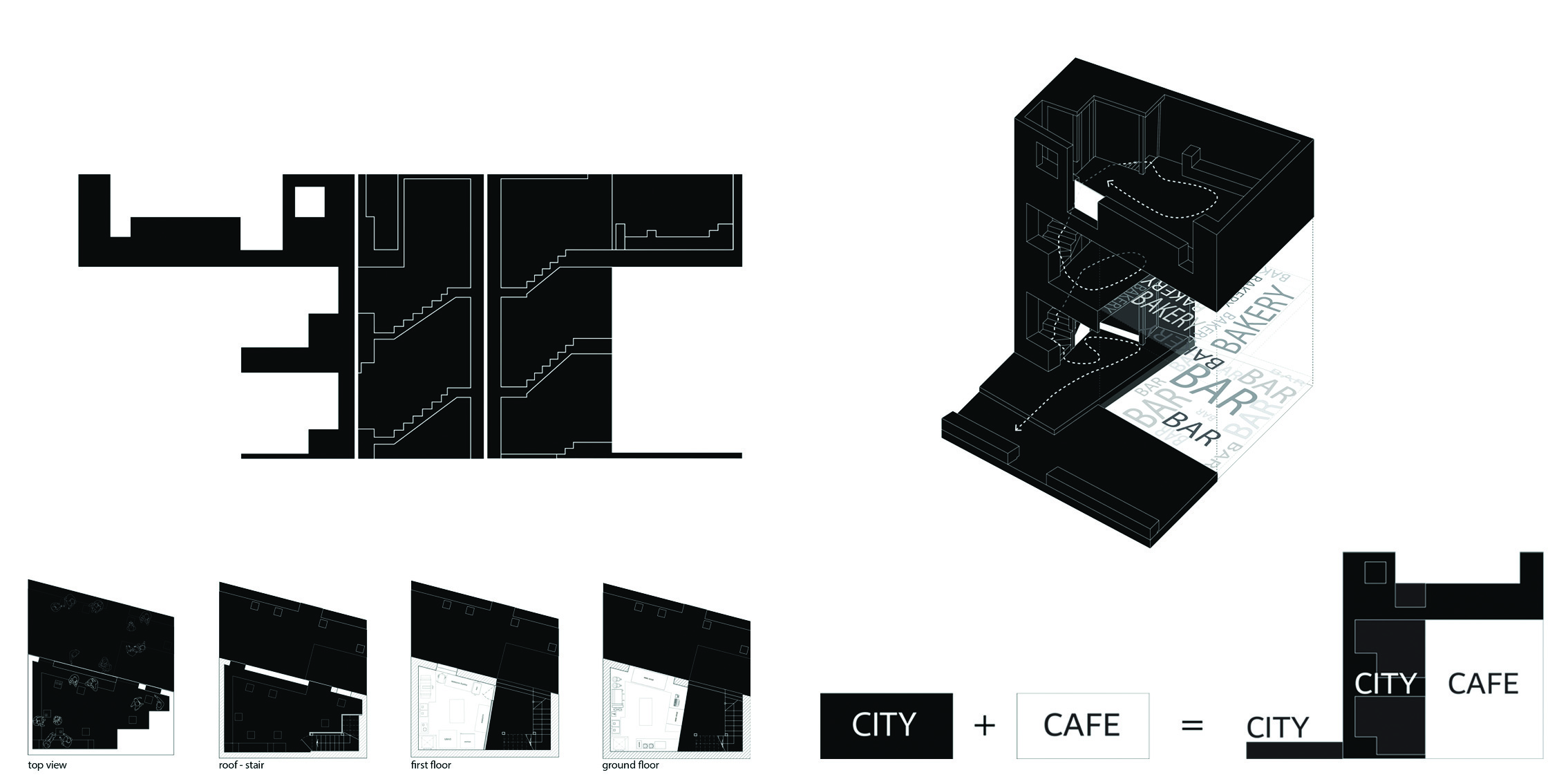

Architectural drawings of Journey Cafe showing floor plans, sections, isometric view with bar and bakery labels, and a conceptual diagram: City + Cafe = City/Cafe/City
Plans, sections, and concept diagram — the project is read as two cores: City + Cafe

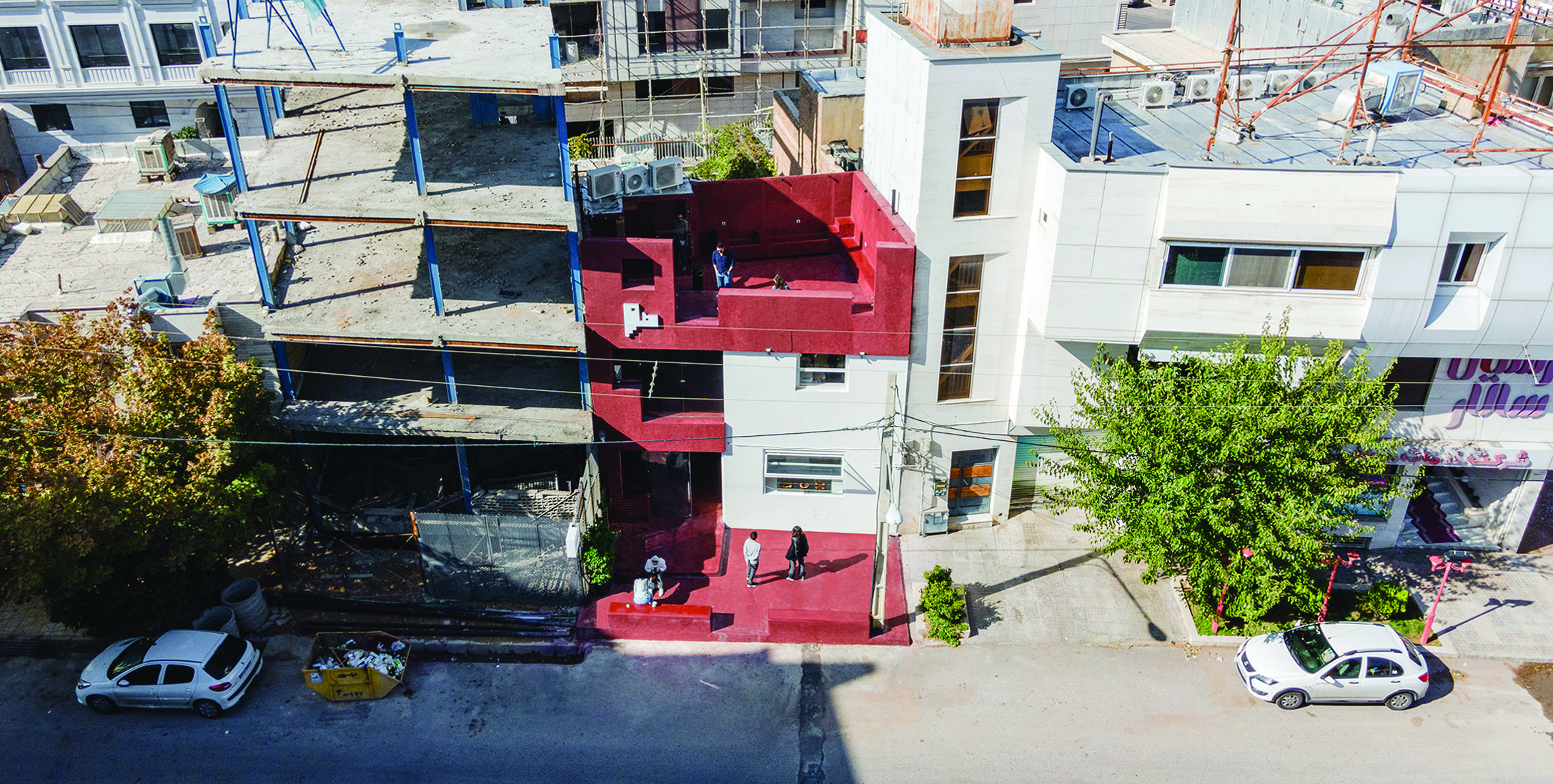

Elevated view of Journey Cafe from across the street, showing the red and white volumes in the context of neighbouring buildings and parked cars
The cafe in its urban context on Alireza’i Street

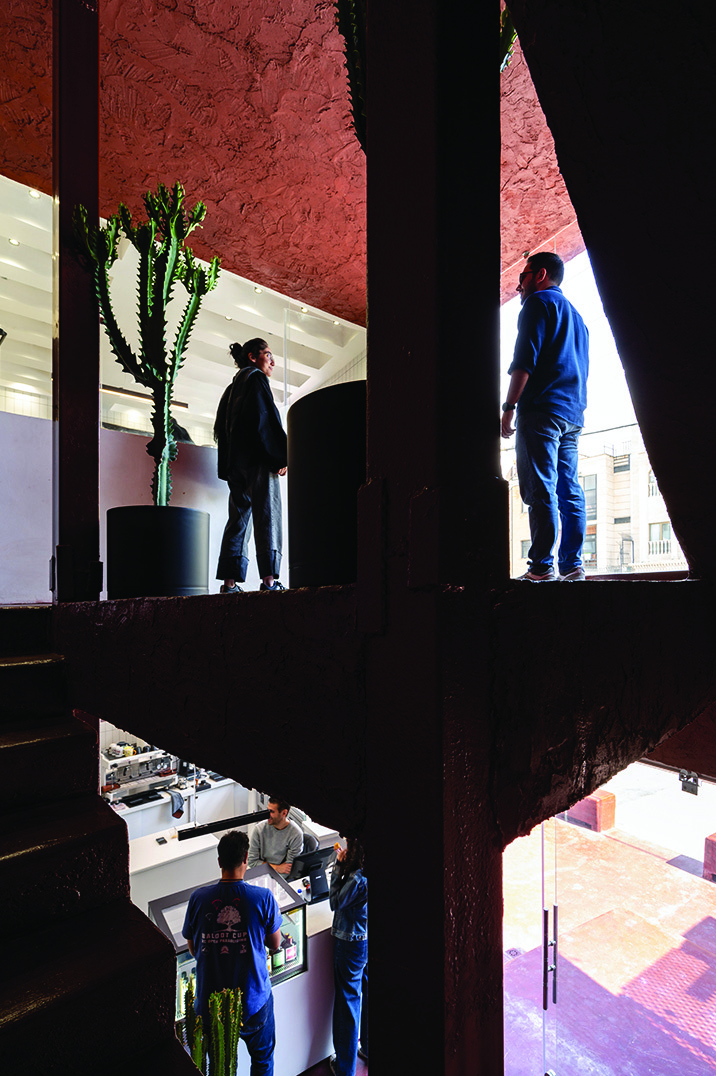

Split-level interior view of Journey Cafe: upper level shows two people standing in angular openings with red cement walls, lower level shows the bar counter with baristas at work
The stairwell as threshold — above, visitors pause between red walls; below, the bar operates in white
♦ ♦ ♦

Economy and Experience

Given the imperative for the project to remain economical, the right core was designed to minimise costs and focus on maximum efficiency, reducing expenditures as far as possible. The right core was finished in white due to hygiene regulations, and all elements within it follow this same approach.

Upon entering the project and traversing the path to the rooftop, the visitor can observe at close range the various processes of beverage preparation, dessert making, and bread baking on different floors, all while ascending to the roof.

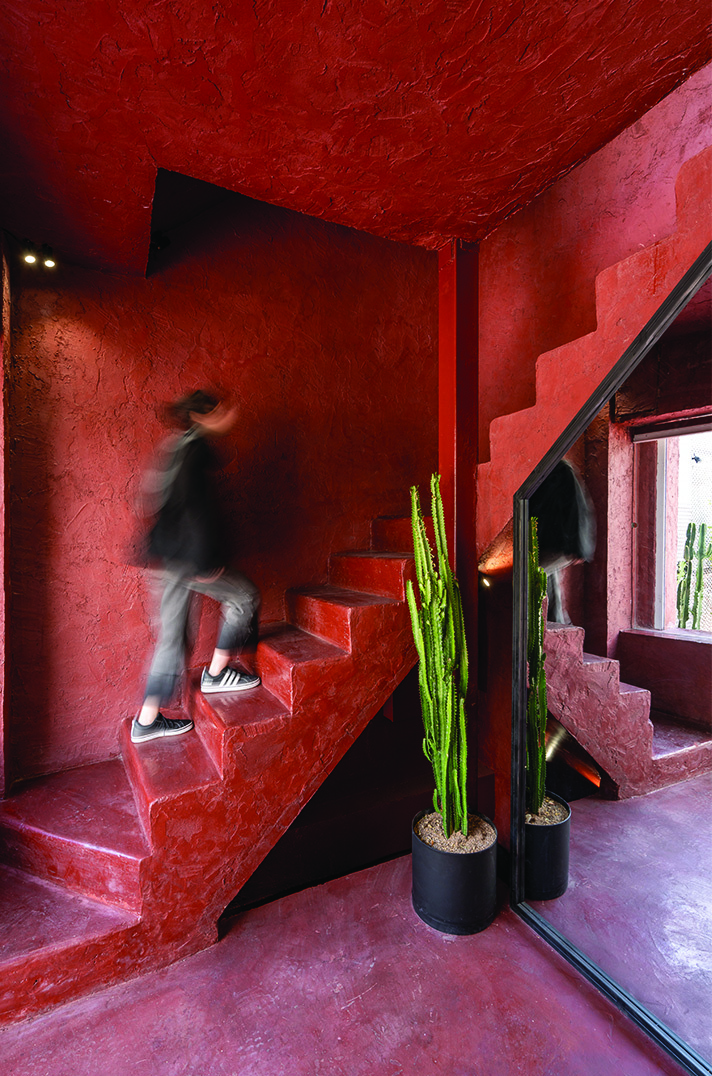

Interior of the red staircase core: a person ascending the red cement stairs, cacti in black pots on the landing, textured red walls and ceiling
Ascending through the red core — textured cement render, cacti, and glimpses of daylight

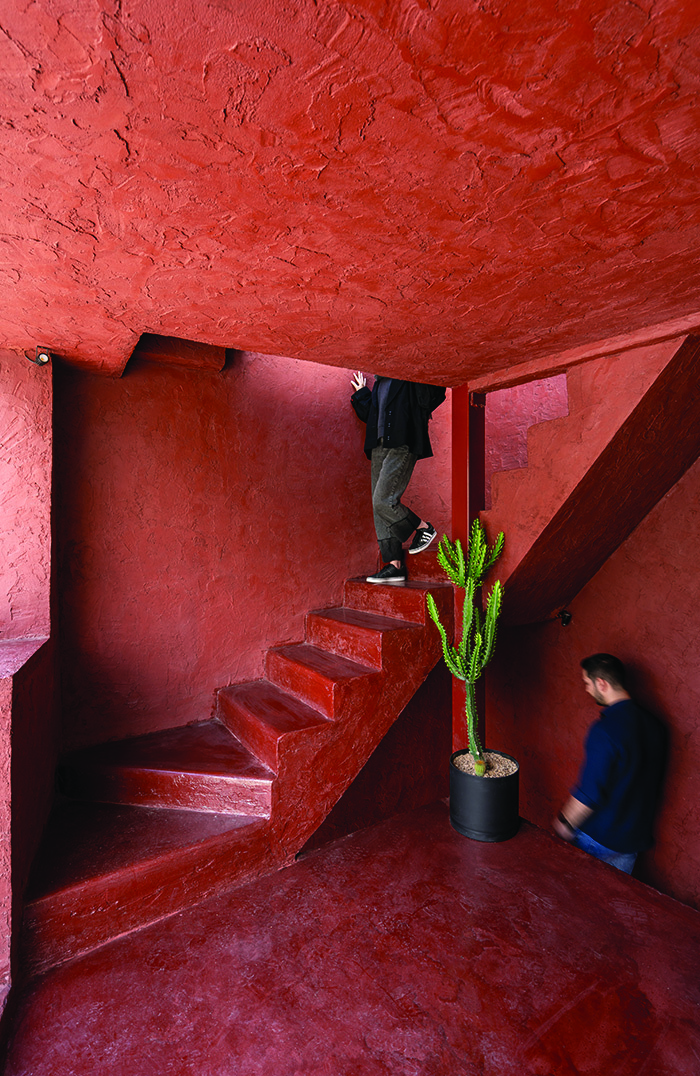

Lower level of the red staircase showing a person descending, textured red cement walls, a cactus in a black pot, and another person seated at the base
The staircase’s lower turn — red render envelops visitors from floor to ceiling
